Troubleshoot: installing Passbolt on Virtualbox

Installation Issues
1

Hello,

This is my first time installing Passbolt in Ubuntu 20.04 and I am now on this part:

Installation is almost complete. Please point your browser to
** http://10.2.0.15 to complete the process**

But when I go to the browser it is only loading and the output is The server at 10.2.0.15 is taking too long to respond.

I have attached screenshot for reference.

Thank you

ub
ub961Ă—508 93.6 KB

2

I have also allowed the firewall connection
ub1

3

Hi @sixela011 Welcome to the forum!

Can you verify which installation method or guide you are following?

Next steps would be:

  • ensure your client machine is able to access the host machine (ping)
  • check webserver logs on host machine for traffic and or errors (assuming NGINX look in /var/log/nginx folders.
7

I’m sorry I input the wrong hostname that is why I cannot view it in the browser. I can now view the nginx page

8

Follow up question Garrett, How can I access this part?
ca

9

@sixela011 If the host machine is running Ubuntu, make sure to install the Ubuntu package which is designed to install on a fresh machine. It will install NGINX and configure it for you.

If you are just looking to take it for a spin and try it out, the Pro edition has a virtual machine install option: Passbolt Help | Using Passbolt pro virtual machine appliance which the easiest and quickest to install.

10

Hello Garrett,

I tried this link for the installation

But I still got an error

dsf
dsf732Ă—433 67.7 KB

11

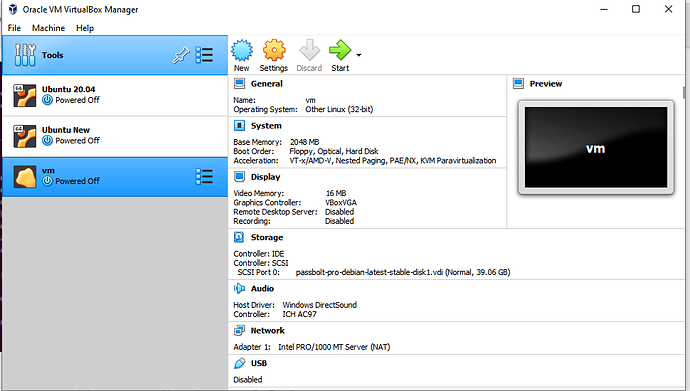

I also tried this one Passbolt Help | Using Passbolt pro virtual machine appliance and already downloaded the ova and the SHA512SUM.txt but when I boot in the VM it is only black.

fd
fd970Ă—551 47.3 KB

gfgf
gfgf647Ă—558 18.7 KB

sdf
sdf723Ă—477 8.35 KB

12

You forgot the special goggles! Just kidding.

@AnatomicJC do you know what causes a black screen like this?

13

I am having hard time installing passbolt :rofl:
I tried solution from google but got the same error.
Thank you for your patience.

14

Hi :wave:

You got a black screen because with Virtualbox, default selected system is a Linux 32-bit

image1110Ă—718 146 KB

You should select Debian 64bit:

image1882Ă—896 194 KB

image1278Ă—616 91.5 KB

Regarding your first issue:

10.2.0.15 is the default virtualbox NAT network, you won’t be able to reach this IP from your computer.

If you want to use NAT, you have to define port forwarding:

image1278Ă—986 134 KB

As an example, here are my settings:

  • 8080 to access to VM port 80
  • 4443 to access to port 443
  • 22222 to access to ssh port 22:

image1040Ă—762 59 KB

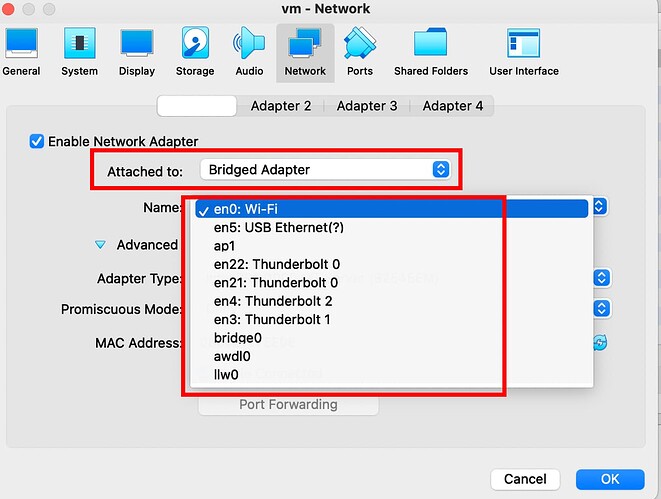

I usually use bridged adapter to “plug” my VM network to my Wifi or Eth card:

image1292Ă—976 75.5 KB

Thus, I can use my home network to access to my passbolt VM. If you choose bridged adapter, you should fix the IP address:

Hope this help :slight_smile:

3 Likes
15

Thank you @AnatomicJC and @garrett I successfully installed the passbolt :grinning:

1 Like
16

Hey guys,
Please see my below query:
Hi guys,

I was testing Passbolt CE via a linode I was checking the installation guide and saw the virtual appliance is only applicable for the paid versions, can’t I just download Debian 12 and boot it in Hyper V (or any other VM virtualization) and then use the Debian 12 guide to install?

I understand the Virtual Appliance comes with everything pre packaged is that the only difference?

17

Hi !

Yes

Yes, that’s the only difference.

Cheers,
